Terminal ZEBRA TC77

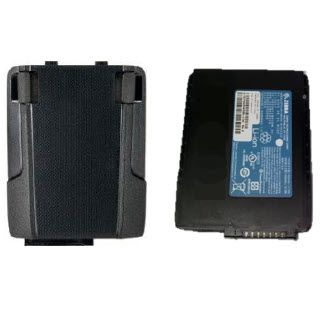

<div> <p><strong>Physical Characteristics</strong></p> </div> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>Dimensions</strong></td> <td>6.3 in. L x 3.3 in. W x 1.1 in. D<br>161 mm L x 84 mm W x 28 mm D</td> </tr> <tr> <td><strong>Weight</strong></td> <td>13.3 oz / 376 g</td> </tr> <tr> <td><strong>Display</strong></td> <td>4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel</td> </tr> <tr> <td><strong>Imager Window</strong></td> <td>Corning Gorilla Glass</td> </tr> <tr> <td><strong>Touchpanel </strong></td> <td>Dual mode capacitive touch with stylus, finger or gloved fingertip input (conductive stylus sold separately); Screen Protector and Rain modes; Corning Gorilla Glass</td> </tr> <tr> <td><strong>Backlight</strong></td> <td>LED backlight</td> </tr> <tr> <td><strong>Power</strong></td> <td>Li-Ion 3.7 V, 4620 mAh. PowerPrecision/ PowerPrecision+: Improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management</td> </tr> <tr> <td><strong>Expansion Slot</strong></td> <td>User accessible MicroSD with 32 GB SDHC and up to 256 GB SDXC</td> </tr> <tr> <td><strong>SIM</strong></td> <td>TC77 only: 2 Nano SIM slots<br>(Dual SIM, Dual Stand-by - EU Only)</td> </tr> <tr> <td><strong>Network Connections</strong></td> <td><strong>TC72:</strong> WLAN, WPAN (Bluetooth)<br><strong>TC77:</strong> WWAN (cellular, WLAN (WiFi), WPAN (Bluetooth); USB 2.0 High Speed (host and client)</td> </tr> <tr> <td><strong>Notification</strong></td> <td>Audible tone; multi-color LEDs; vibration</td> </tr> <tr> <td><strong>Keypad</strong></td> <td>On-screen keypad and Enterprise Keyboard</td> </tr> <tr> <td><strong>Voice and Audio</strong></td> <td>Three microphone support with noise cancellation; vibrate alert; speaker; Bluetooth wireless headset support, high quality speaker phone; PTT headset support; cellular circuit switch voice; HD Voice</td> </tr> </tbody> </table> <p> </p> <p><strong>Performance Characteristics</strong><span id="tablegrid_7149"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>CPU</strong></td> <td>Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz</td> </tr> <tr> <td><strong>Operating System</strong></td> <td><strong>TC72: </strong>Android 10; upgradeable through A11/ R2²<strong>^<br>TC77:</strong> Android 10; upgradeable through A11/ R2²</td> </tr> <tr> <td><strong>Memory</strong></td> <td>4 GB RAM/32 GB Flash pSLC</td> </tr> <tr> <td><strong>Internet Protocol</strong></td> <td>IPv4 and IPv6</td> </tr> </tbody> </table> <p> </p> <p><strong>User Environment</strong><span id="tablegrid_d335"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>Operating Temp.</strong></td> <td>-4° F to 122° F/-20° C to 50° C</td> </tr> <tr> <td><strong>Storage Temp.</strong></td> <td>-40°F to 158°F/-40°C to 70°C</td> </tr> <tr> <td><strong>Humidity</strong></td> <td>5% to 90% non-condensing</td> </tr> <tr> <td><strong>Drop Specifications</strong></td> <td>Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G</td> </tr> <tr> <td><strong>Tumble Specifications</strong></td> <td>2,000 3.3 ft./1.0 m tumbles; meets and exceeds IEC tumble specifications</td> </tr> <tr> <td><strong>Sealing</strong></td> <td>IP65 and IP68 per applicable IEC sealing specifications</td> </tr> <tr> <td><strong>Vibration</strong></td> <td>4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis</td> </tr> <tr> <td><strong>Thermal Shock</strong></td> <td>-40° F to 158° F/-40° C to 70° C rapid transition</td> </tr> <tr> <td><strong>Electrostatic Discharge (ESD)</strong></td> <td>+/-15kVdc air discharge; +/-8kVdc direct discharge; +/-8kVdc indirect discharge</td> </tr> </tbody> </table> <p> </p> <p><strong>Interactive Sensor Technology (IST)</strong><span id="tablegrid_21fb"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>Light Sensor</strong></td> <td>Automatically adjusts display backlight brightness</td> </tr> <tr> <td><strong>Motion Sensor</strong></td> <td>eCompass, 3-axis Gyro, 3-axis accelerometer</td> </tr> <tr> <td><strong>Atmospheric Pressure Sensor</strong></td> <td>Yes, TC77 only</td> </tr> </tbody> </table> <p> </p> <p><strong>Data Capture</strong><span id="tablegrid_fd13"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>Scanning</strong></td> <td>SE4770: 1D/2D omnidirectional imager<br>SE4750: 1D/2D omnidirectional imager<br>Digimarc Symbology support</td> </tr> <tr> <td><strong>Camera</strong></td> <td>Front — 5MP fixed focus<br>Rear — 13 MP autofocus; f/2.4 aperture; flash LED generates balanced white light; supports Torch mode; 4K video with image stabilization<br>Camera supports barcode scanning</td> </tr> <tr> <td><strong>NFC</strong></td> <td>ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host<br>SAM support for Calypso, Felica and Mifare technology TC77 only: Dual SAM support on TC77 SAM SKU </td> </tr> </tbody> </table> <p><span id="text_f8e2"></span>   <span id="tablegrid_655c"></span>   <span id="text_c192"></span>   <span id="tablegrid_fa92"></span>   <span id="text_70a2"></span>   <span id="tablegrid_41b3"></span>   <span id="text_f231"></span>   <span id="tablegrid_8794"></span>   <span id="text_9447"></span>   <span id="tablegrid_1e6b"></span>  </p> <div><span id="text_faef"></span> <p><strong>Wireless WAN Data and Voice Communications</strong></p> </div> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>TC77 Only: Radio Frequency Band</strong></td> <td>Supports VoLTE , Carrier Aggregation up to 3DL CA<br>AT&T FirstNet Ready certification<br>Verizon PNTM certification<br>LTE FDD: 700/800/850/900/1800/1900/AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2,25/4,66/1/7);<br>LTE TDD: 1900/2300/2500 (39/40/41,38);<br>UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1);<br>GSM/GPRS/EDGE: 850/900/1800/1900</td> </tr> <tr> <td><strong>GPS</strong></td> <td> <p>TC77 only: Autonomous, Assisted GPS (A-GPS); Navstar; GLONASS; Gallileo; BeiDou</p> </td> </tr> </tbody> </table> <p> </p> <p><strong>Wireless LAN</strong><span id="tablegrid_3601"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>Radio</strong></td> <td>IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO </td> </tr> <tr> <td><strong>Data Rates</strong></td> <td>5GHz: 802.11a/n/ac — up to 866.7 Mbps<br>2.4GHz: 802.11b/g/n — up to 300 Mbps</td> </tr> <tr> <td><strong>Operating Channels</strong></td> <td>Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz)<br>Channel Bandwidth: 20, 40, 80 MHz<br>Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency</td> </tr> <tr> <td><strong>Security and Encryption</strong></td> <td>WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD</td> </tr> <tr> <td><strong>Multimedia</strong></td> <td>Wi-Fi Multimedia™ (WMM) and WMM-PS</td> </tr> <tr> <td><strong>Features</strong></td> <td>Soft AP, 2x2 MU-MIMO, 256 QAM Modulation on 5G GHz radio; Maximum Ratio Combining (MRC), Tx/Rx Low-Density Parity Check (LDPC), Transmit Beamforming(TxBF) and Beamformee (BFee) capability, Full IEEE 802.11 a/b/g/n legacy compatibility</td> </tr> <tr> <td><strong>Certifications</strong></td> <td>WFA (802.11n, WMM-PS, 801.11ac, PMF)</td> </tr> <tr> <td><strong>Fast Roam</strong></td> <td>PMKID caching; Cisco CCKM; 802.11r; OKC</td> </tr> </tbody> </table> <p> </p> <p><strong>Wireless PAN</strong><span id="tablegrid_91d2"></span></p> <table style="width: 100%;" border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td style="width: 20.471%;"><strong>Bluetooth</strong></td> <td style="width: 79.1667%;">Bluetooth v5.0, Bluetooth Low Energy (BLE)<strong><br></strong></td> </tr> </tbody> </table> <p> </p> <p><strong>Communication and Messaging</strong><span id="tablegrid_f1c8"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td>Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration. Workforce Connect Voice client (supported) enables the TC72/TC77 Series to function as a full featured mobile telephone with multi line capability across Wi-Fi networks.</td> </tr> </tbody> </table> <p> </p> <p><strong>Warranty</strong><span id="tablegrid_bbfb"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td>Subject to the terms of Zebra’s hardware warranty statement, the TC72/TC77 Series is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: <br><a href="https://www.zebra.com/warranty">http://www.zebra.com/warranty</a></td> </tr> </tbody> </table> <p> </p> <p><strong>Recommended Services</strong><span id="tablegrid_c568"></span>  </p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td>Zebra OneCare® Essential and Select support services<br>Zebra Visibility Services – VisibilityIQ™ Foresight or Asset Visibility Service</td> </tr> </tbody> </table> <p> </p> <p><strong>Footnotes</strong><span id="tablegrid_a2e2"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td>1. Based on typical user profiles<br>2. Support for future Android OS released past A11/R, are subject to Qualcomm validation<br>Specifications subject to change without notice.</td> </tr> </tbody> </table> <p> </p> <p><strong>Environmental Compliance</strong><span id="tablegrid_d318"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td><strong>Environment</strong><br>• RoHS Directive 2011/65/EU; Amendment 2015/863<br>• REACH SVHC 1907/2006<br>A complete list of product and materials compliance, please visit:<br><a href="http://www.zebra.com/environment" target="_blank" rel="noopener">www.zebra.com/environment</a></td> </tr> </tbody> </table> <p><span id="text_b484"></span>   <span id="tablegrid_c911"></span>   <span id="text_c285"></span></p> <p><strong>Mobility DNA Software</strong><span id="tablegrid_81ec"></span></p> <table border="1" width="100%" cellspacing="0" cellpadding="1"> <tbody> <tr> <td> <p>Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit<br><a href="https://www.zebra.com/mobilitydna">www.zebra.com/mobilitydna</a></p> <p> </p> <p>Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit:<br><a href="https://developer.zebra.com/mobilitydna">https://developer.zebra.com/mobilitydna</a></p> </td> </tr> </tbody> </table>
