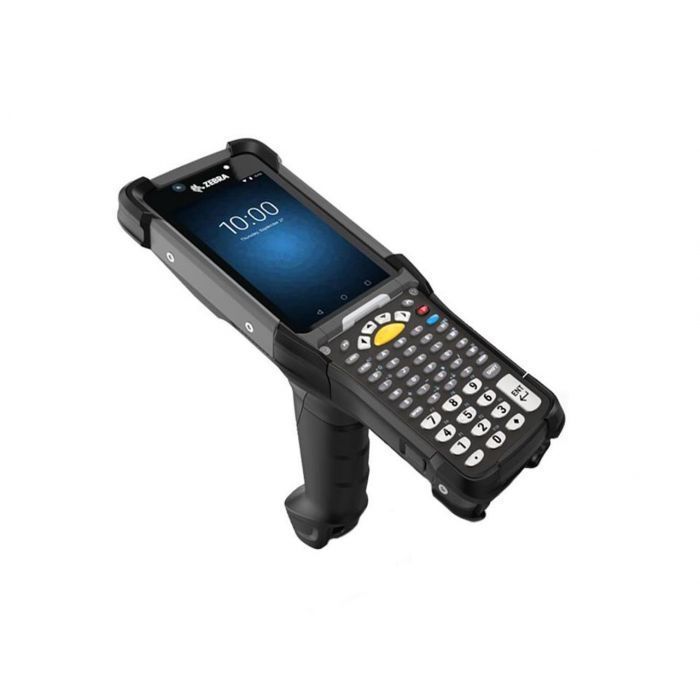

Terminal Zebra MC930P-GSBHG4RW
In stock
SKU
MC930P-GSBHG4RW
€3,938.31
Quick Overview
The Terminal Zebra MC9300 is an advanced handheld terminal, perfect for industrial applications. Manufactured by renowned company ZEBRA in the United States, this device weighs 26,9 oz. and comes with a built-in battery. With a high-quality construction and a host of features, this terminal is designed to meet all your industrial needs.
| Wireless Radio | 802.11a/b/g/n/d/h/i/k/r/ac + NFC+ BT 5.1 + 2x2 MuMIMO - SD660 + Vibe |
|---|---|
| Environment | Standard |
| Barcode scanner | SE965 1D standard range + Camera |
| Keyboard | 58 Key Alpha Numeric |
| Operating System | Android 8.1 GMS |
| Memory options (RAM/Flash) | 4GB/32GB |
Write Your Own Review
| File to download: | zebra_mc9300.pdf |
|---|---|
| File to download: | zebra_mc9300_specsheet.pdf |
| File to download: | zebra_mc93xx_qsg_en.pdf |
SPECIFICATIONS
Physical Characteristics
| Dimensions | 9.4 in. L x 3.5 in. W x 7.4 in. H 240 mm L x 88 mm W x 189 mm H |
| Weight | 26.9 oz./765g with battery |
| Display | 4.3 in. WVGA (800 x 480), color display |
| Imager Window | Corning Gorilla Glass |
| Touchpanel | Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model). |
| Backlight | LED backlit display |
| Power | Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh) Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence |
| Expansion Slot | User accessible MicroSD with 32GB SDHC and up to 256GB SDXC |
| Network Connections | USB 2.0 High Speed (Host & Client), WLAN and WPAN (Bluetooth) |
| Notification | Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback |
| Keypad | Backlit, Field replaceable keypads; 58 Key Alpha-Numeric, 53 Key Alpha-Numeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key, 34 Key Numeric/Function, 29 Key Numeric/Calculation |
| Voice & Audio | Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support). |
Performance Characteristics
| CPU | Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz |
| Operating System | Android 10; upgradeable through A11/ R² |
| Memory | 4 GB RAM/32 GB Flash pSLC |
User Environment
| Operating Temp. | Standard: -4°F to 122°F/-20°C to +50°C, Freezer: -22°F to 122°F/-30°C to +50°C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | Standard: 5% to 95%, non-condensing; Freezer: 5% to 95%, condensing (Condensation resistant model with integrated exit window heater) |
| Drop Specification | Standard: 10 ft. (3.1m) drops at room temperature per MIL-STD-810G, 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G. |
| Tumble Specification | 6,000 3.3 ft. (1m) tumbles; meets and exceeds IEC tumble specification. |
| Sealing | IP67 and IP65 per applicable IEC sealing specifications |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Thermal Shock | -40°F to 158°F (-40° C to 70°C) rapid transition |
| Electrostatic Discharge (ESD) | ± 15kVdc air discharge; ± 8kVdc direct discharge; ± 8kVdc indirect discharge |
Interactive Sensor Technology (IST)
| Ambient Light Sensor | Automatically adjusts display and keypad backlight brightness |
| Motion Sensor | 3-axis Accelerometer with MEMS Gyro |
Data Capture
| Scanning | SE965: 1D standard range laser scanner SE4750: 1D/2D standard range omnidirectional imager SE4770: 1D/2D standard range omnidirectional imager SE4750 DPM: Direct Part Mark (DPM) imager SE4850: 1D/2D extended range imager |
| Camera | Front: 5MP fixed focus, 2.0 aperture Rear: 13MP autofocus, 2.2 aperture, flash LED generates balanced white light, support torch mode, supports rear camera barcode scanning |
| NFC | Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support |
Wireless LAN
| Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2x2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz); Chan 36-165 (5180-5825 MHz) Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/WPA2 Enterprise (TKIP and AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD FIPS 140-2 Level 1: Data in Motion and Data at Rest |
| Multimedia | Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC) |
| Certifications | WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, WiFi Direct and WPS 2.0) |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r; OKC |
Wireless PAN
| Bluetooth | Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
Device Approvals and Compliance
| TAA (Optional on select configurations) | Trade Agreement Act optional on select configurations Compliant, FIPS 140-2 (DIM and DAR) support; FIPS 140-2 Level 1: Data in Motion and Data at Rest |
| Non-Incendive (NI)1 (Optional on select configurations) | Suitable for use in Class I, II, III Div 2 Safety: cULus Listing — ISA/ANSA 12.12.01 Gases: Class I — Groups A, B, C, D Dusts: Class II — Groups F, G Fibers and Flyings: Class III -20°C ≤ Ta ≥ +50°C T6 |
Communication and Messaging
| Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration. Workforce Connect Voice client (supported) enables the MC9300 to function as a full featured mobile telephone with multi-line capability across Wi-Fi networks featured mobile telephone with multi-line capability across Wi-Fi networks. |
Warranty
| Subject to the terms of Zebra`s hardware warranty statement, the MC9300 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: https://www.zebra.com/warranty |
Recommended Services
| Zebra OneCare® Essential and Select support services Zebra Visibility Services – VisibilityIQ™ Foresight or Asset Visibility Service |
