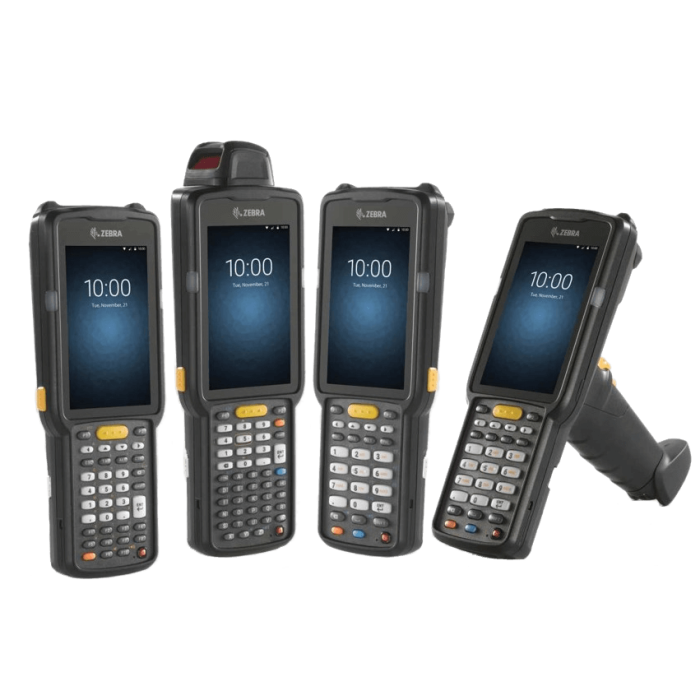

Terminal Zebra MC330M-RL3HG2RW
Out of stock
SKU
MC330M-RL3HG2RW
€951.19
Physical Characteristics
| Dimensions | MC3300 Straight Shooter (45° Scan and 0° Scan):
|
| Weight | MC3300 Straight Shooter (0° Scan):
|
| Display | 4.0 inch capacitive; WVGA; color |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Corning® Gorilla® Glass touch panel with air gap |
| Backlight | LED backlight |
| Expansion Slot | User accessible MicroSD card slot; with 32GB SDHC and up to 256GB SDXC |
| Network Connections | USB 2.0 High Speed (host and client), WLAN and Bluetooth |
| Notification | Side LEDs and audible tone |
| Keypad | Numeric (29 Key), Function Numeric (38 Key), Alpha Numeric (47 Key) |
| Voice | PTT Express4 and Pro4 Support (internal speaker/microphone or wireless Bluetooth headset) |
| Audio | Speaker & Microphone |
| Audio Jack | All models except the Gun/Pistol: Integrated 2.5mm (Premium and Premium + models only—not available on Standard configurations) |
| Buttons | Two programmable side scan keys |
Performance Characteristics
| CPU | Qualcomm® APQ8056, 1.8GHz Hex-Core, 64-bit with power optimization |
| Operating System | Android 8.1 (Oreo); AOSP & GMS - select configurations |
| Memory | 2GB/16GB Standard 4GB/16GB Premium 4GB/32GB Premium Plus |
| Power | MC3300 Straight Shooter (45° Scan and 0° Scan)/ and Turret (Rotating Head): Rechargeable Li-Ion: standard (1X) 2740 mAh; High Capacity (2X) 5200 mAh; Fast charging with the new accessories MC3300 Gun/Pistol: Rechargeable Li-Ion: high capacity 5200 mAh; Fast charging support (new accessories) |
User Environment
| Operating Temperature | -4°F to 122°F/-20°C to 50°C |
| Storage Temperature | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% to 95% RH (Non-condensing) |
| Drop Specifications | Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range |
| Tumble Specifications | 1,000 3.3 ft./1 m tumbles |
| Sealing | IP54 |
| Vibration | 5Hz to 2KHz |
| Thermal Shock | -40°C to 70°C |
| Electrostatic Discharge (ESD) | +/-15kV air, +/8kV contact discharge |
Interactive Sensor Technology (IST)
| Motion Sensors | 3-axis accelerometer; gyroscope |
Data Capture
| Scanning | MC3300 Brick/Straight Shooter (0° Scan):
|
| Rear Camera | 13MP with Flash (Premium + models only) (Not available on the MC3300 Gun/Pistol) |
| NFC | Available on Premium and Premium + models |
Wireless LAN
| Radio | 802.11 a/b/g/n/ac/d/h/i/k/r/v/w |
| Data Rates | 2.4GHz: 144Mbps 5GHz: 867Mbps |
| Operating Channels (depending on Regulatory) | 2.4GHz: 1 to 13 5GHz: 36,40,44,48,52,56,60,64, 100,104, 108,112,116,120,124,128,132,136,140,(144),149, 153,157,161,165 |
| Security and Encryption | WEP, WPA/WPA2 PSK , WPA/WPA2 Enterprise |
| Certifications | 802.11n/ac, WMM-PS, WMM-AC, PMF, Voice Enterprise, Wi-Fi Direct, WPS |
| Fast Roam | PMKID/OKC/CCKM/802.11r |
Wireless PAN
| Bluetooth | V4.1, V2.1 + EDR w/ Bluetooth Low Energy (BLE) |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the MC3300 is warranted against defects in workmanship and materials for a period of 1 (one year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential |
Footnotes
| 1. Requires a valid Zebra OneCare service contract. 2. Compatible with most Zebra mobile devices. 3. Compatible with most popular PBXs. 4. Requires purchase of a stand alone license. |
| Wireless Radio | 802.11a/b/g/n/d/h/i/k/r/ac + No NFC + BT 4.x + 2x2 MIMO (WLAN Only) - BASIC Tier |
|---|---|
| Form Factor | Rotating (Turret) Head |
| Barcode scanner | SE965 1D standard range |
| Keyboard | 38 Key |
| Battery capacity | High Capacity 5200mAh |
| Operating System | Android 8.1 GMS |
| Memory options (RAM/Flash) | 2GB/16GB |
