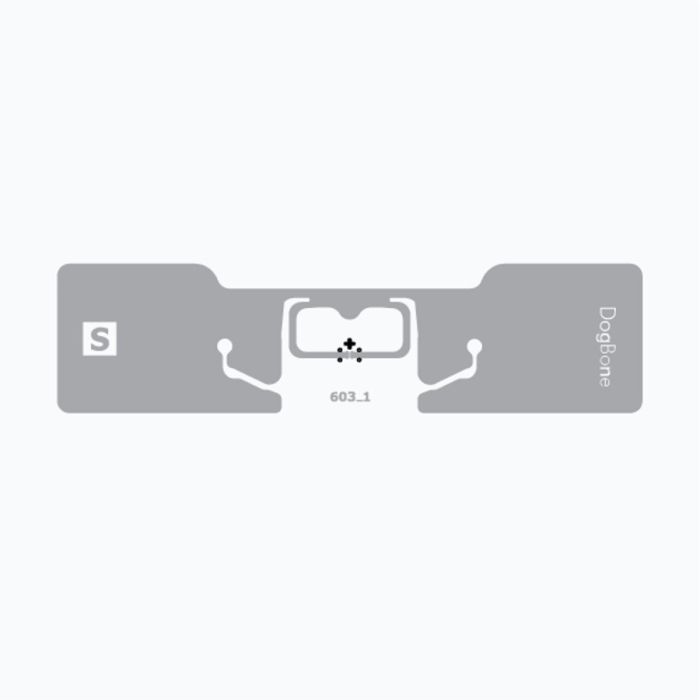

Smartrac DogBone RFID Paper Tag (M730)
In stock
SKU
3008054
€100.67
Quick Overview
Smartrac DogBone RFID Paper Tag (M730)
Smartrac DogBone RFID Paper Tags excel through superior performance in demanding environments and on difficult-to-tag materials, due to their high tolerance against the detuning effect of high dielectric materials. Equipped with the M730 IC from Impinj, these tags feature 128 bit-EPC memory and offer an enhanced “autotune” adaptive RF tuning feature. In addition, the M730 IC has an improved read and write sensitivity, enabling faster and more accurate bulk reading compared to Impinj R6/R6-P.
Write Your Own Review
| File to download: | Smartrac DogBone RFID Tags (M730).pdf |
|---|---|
| File to download: |
Features
- Excellent global performance on difficult-to-tag materials.
- Good tolerance to the detuning effect of highly dielectric materials.
- Optimized for 100 mm (4 inch) wide converted labels.
- Impinj M730 IC tag chip.
- Manufactured to the highest quality standards as confirmed by the RFID Lab at Auburn University.
- Common applications: inventory and logistics, sports timing, and supply chain management.
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPCglobal Gen2v2 (ISO 18000-63) |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj M730 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Unique, randomized number |
| Max Read Distance: | Testing recommended |
| Applicable Surface Materials: | Plastic, cardboard, glass, paper |
| MECHANICAL: | |
| Tag Form Factor: | Paper tag |
| Tag Materials: | Mid-gloss paper |
| Recommended Ribbon: | Not published |
| Attachment Method: | Not published |
| Dimensions: | 97 x 27 mm (3.82 x 1.06 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -45° to +85°C (-49° to +185°F) |
