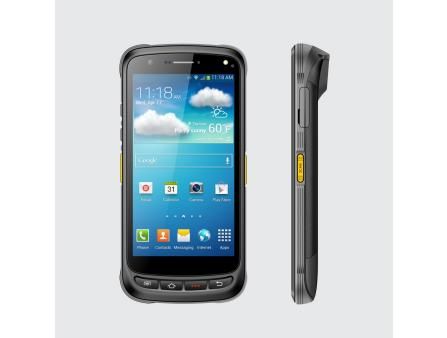

Handheld terminal Chainway C71E-2SE2-N-IRCC8R3
In stock
SKU
C71E-2SE2-N-IRCC8R3
€124,286.38
Specification
Physical Characteristics
| Dimensions | 164.2*78.8*17mm/6.46*3.10*0.67in (for standard version) |
| Weight | <288g / 10.15oz (for standard version) |
| Display | 5.2'' IPS FHD 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card, three choice two |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor |
User Environment
| Operating Temp. | 4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.6ft falls at room temperature |
| Sealing | IP65/IP67 per IEC sealing specifications |
| ESD | ±8KV air discharge, ±4KV conductive discharge |
Performance
| CPU | Cortex-A53 Quad-core 1.3GHz* or Cortex-A53 Octa-core 2.5 GHz |
| RAM+ROM | 2GB+16GB*/3GB+32GB |
| Expansion | Supports up to 32 GB* or 128GB Micro SD card |
Developing Environment
| Operating System | Android 6.0* or 8.1 |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
Communication
| WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
| WWAN (Europe) | 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40 |
| WWAN (America) | 2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHz 4G: B2, B4, B7, B12, B17 |
| WWAN (China) | 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41 |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth 4.0, BLE |
| GNSS | GPS/AGPS, GLONASS, BeiDou, internal antenna |
Fingerprint
| Sensor | Capacitive TCS1/TCS2; Optical Morpho CBM-E3 |
| Note | *For detailed specification, please check C71 (Capacitive/Optical Fingerprint) webpages |
UHF RFID
| Frequency | 865MHz-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization (1dBi) |
| Power | 0.4W (26dBm, +16dBm to +26dBm adjustable) |
| R/W ranges | 1m (depend on tags and environment) |
| Note | *This function is optional |
PSAM
| Protocol | ISO7816 T=0, T=1 |
| Slots | 2 slots for PSAM cards |
| Note | *This function is optional |
InfraRed
| Wavelength | 940nm |
| Frequency | 38kHz |
| Range | >4m |
| Protocol | DLT_645-2007, DLT_645-1997 |
| Note | *This function is optional |
Barcode Scanning
| 1D Linear Scanner | Zebra SE965 / Honeywell N4313 |
| 2D Imager Scanner | Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
Camera
| Camera | 13MP autofocus rear camera with flash, optional 5MP front camera |
NFC
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Note | *This function is optional |
HF RFID
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693 |
| Chips | M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81) CPU_A card,CPU_B card ICODE II,TI2048,LRI64K Others for customization |
| Range | 3-8cm |
| Note | *This function is optional |
Iris Recognition
| Rate | <150ms |
| Range | 20-40cm |
| FAR | 1/10000000 |
| Note | Protocol:ISO/IEC 19794-6,GB/T 20979-2007 |
| Note2 | *This function is optional *Iris is alternative to front camera |
| Core number | 8 |
|---|---|
| Barcode scanner | SE4750 1D/2D Medium Range Imager |
| RFID | NFC |
| Memory options (RAM/Flash) | 3GB/32GB |
| camera | rear camera/top camera |
| Battery | No |
| infrared | Yes |
| iris | without |
| fingerprint | without |
