Handheld terminal Chainway C66E-2SE-N-PCC8R4A11

Skip to the end of the images gallery

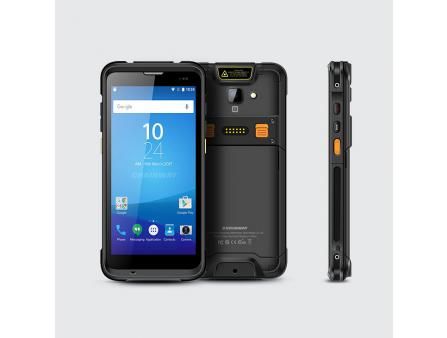

main product photo

Skip to the beginning of the images gallery

Handheld terminal Chainway C66E-2SE-N-PCC8R4A11

Be the first to review this product

In stock

SKU

C66E-2SE-N-PCC8R4A11

€12,428.03

Specification

Physical Characteristics


Dimensions	160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in.
Weight	287 g / 10.12 oz. (device with battery)
Display	5.5-inch high definition full display (18:9) , IPS LTPS 1440 x 720
Battery	4300 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC Standby: over 300 hours (only main battery) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5hours (charge device by standard adaptor and USB cable)
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Speaker	Support
Vibrator	Support
Microphone	2 Microphones, 1 for noise reduction
Interfaces	USB3.0, Type-C, OTG, extended thimble
Card slot	2 slots for SIM card, 1 slot for TF card
Keypad	1 power key, 2 scan keys, 2 volume keys, 1 PTT key
Sensors	Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor
Indicator LED	Power, charging, status indicator

User Environment


Operating Temp.	-20 ℃~+50 ℃
Storage Temp.	-40 ℃~+70 ℃
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4m/7.87ft drops (at least 20 times) to the concrete after installed rubber bumper
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65 per IEC sealing specifications
ESD	±15 KV air discharge, ±8 KV conductive discharge

Developing Environment


Operating System	Android 11; GMS, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Performance


CPU	Qualcomm 1.8 GHz Octa-core
RAM+ROM	2 GB + 16 GB / 3 GB + 32 GB / 4 GB + 64 GB
Expansion	Supports up to 128 GB Micro SD card

UHF 1


Engine	CM2000-1 module based on Impinj Indy R2000
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Circular Polarized Antenna (4dBi)
Power	1W (30dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
R/W range	＞25 m (indoors) ; ＞15 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate	900+ tags/sec
Communication Mode	Pin Connector
Note	*Ranges and rates depend on tags and environment This function is optional

UHF 2


Engine	CM2000-1 module based on Impinj Indy R2000
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Circular Polarized Antenna (3 dBi)
Power	1W (30 dBm, support +5~+30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
R/W range	＞22 m (indoors) ; ＞10 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate	900+ tags/sec
Communication Mode	Pin Connector / Bluetooth
Note	*Ranges and rates depend on tags and environment This function is optional

Barcode Scanning (Optional)


2D Scanner	Zebra: SE4710 / SE2100; Honeywell: N6603
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note	*This function is optional

Camera


Camera	Rear 13 MP Autofocus with flash

NFC


Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm

Communication


WLAN	Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
WWAN (Europe, Asia)	2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39) 4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
WWAN (America)	2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B2, B4, B5, B7, B12, B17, B38
Vo-LTE	Support Vo-LTE HD video voice call
Bluetooth	Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
GNSS	GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Note	*C66 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Optional accessories


Accessories	Separate handle with one button； Handle + battery (handle battery 5200mAh, one button) ; UHF back clip + handle (5200mAh, one button) ; Wrist Strap; Rubber Bumper; Charging Cradle
Note	*See details in Accessory Guide

More Information

More Information
Core number	8
Barcode scanner	SE4710
RFID	NFC
Pistol grip	Yes
Operating System	Android 9.0
Memory options (RAM/Flash)	4GB/64GB
camera	rear camera/top camera
Battery	No

File to download:	Chainway_C66_Accessories_Guide-EN.pdf
File to download:	Chainway_C66_User_Manual.pdf
File to download:	Chainway_C66-EN.pdf
