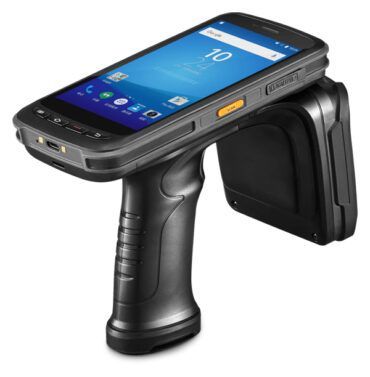

Handheld terminal Chainway C72AL-2SE-N-PCC8R3A11
In stock
SKU
C72AL-2SE-N-PCC8R3A11
€233.56
Related Products
Check items to add to the cart or
Specification
Physical Characteristics
| Dimensions | 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in |
| Weight | 654g / 23.07oz |
| Display | 5.2'' IPS FHD 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 8000mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, light sensor, proximity sensor |
User Environment
| Operating Temp. | 4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.64ft falls at room temperature |
| Sealing | Host IP65 per IEC sealing specifications |
| ESD | ±8KV air discharge, ±4KV conductive discharge |
Performance
| CPU | Cortex-A53 Octa-core 2.3 GHz |
| RAM+ROM | 3GB+32GB |
| Expansion | Supports up to 32 GB or 128GB Micro SD card |
Developing Environment
| Operating System | Android 11 |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
Communication
| WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
| WWAN (Europe) | 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHZ 4G: B1, B3, B5, B7, B8, B20, B40 |
| WWAN (America) | 2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHZ 4G: B2, B4, B7, B12, B17 |
| WWAN (China) | 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41 |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth 4.0, BLE |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
UHF RFID
| Frequency | 865MHz-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Linear polarization(1.8dBi); circular polarization (4dBi) |
| Power | 1W (30dBm, +5dBm to +30dBm adjustable) |
| R/W ranges | >7m (linear polarization, outdoors); >21m (linear polarization, indoors) >10m (circular polarization, outdoors); >25m (circular polarization, indoors) |
| Reading rates (circular polarization) | >200 tags/s (circular polarization) |
| Note | *Ranges and rates depend on tags and environment |
| Note2 | *This function is optional |
Barcode Scanning
| 1D Linear Scanner | Zebra SE965 / Honeywell N4313 |
| 2D Imager Scanner | Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
Camera
| Camera | 13MP Autofocus with flash |
NFC
| Frequency | 13.56MHz |
| Note | *This function is optional |
Iris Recognition
| Rate | <150ms |
| Range | 20-40cm |
| FAR | 1/10000000 |
| Note | Protocol:ISO/IEC 19794-6,GB/T 20979-2007 |
| Note2 | *This function is optional |
| Core number | 8 |
|---|---|
| Barcode scanner | SE4710 |
| RFID | NFC |
| Pistol grip | Yes |
| Memory options (RAM/Flash) | 3GB/32GB |
| camera | rear camera/top camera |
| Battery | No |
Write Your Own Review
| File to download: | KeyboardEmulator_u_C7x.apk |
|---|---|
| File to download: | AppCenter_u_C7x.apk |
| File to download: | C72_without_UHF-EN.pdf |
| File to download: | C72-RoHS.pdf |
| File to download: | C72_User_Manual.pdf |
| File to download: | C72-EN.pdf |
| File to download: | C72-CCC.pdf |
| File to download: | C7X-EN-Accessories_Guide.pdf |
