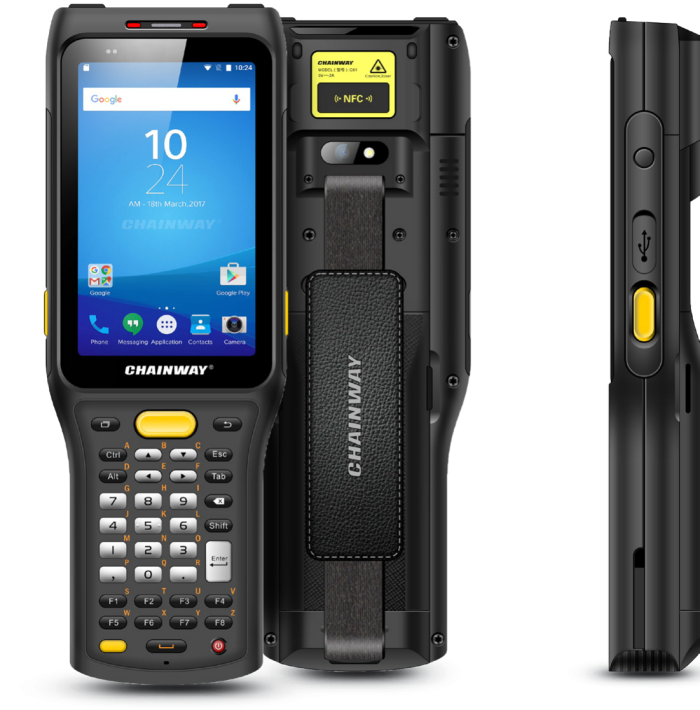

Handheld terminal Chainway C61E-2SE2-N-PCK37C8R3A11
In stock
SKU
C61E-2SE2-N-PCK37C8R3A11
€121.81
SPECIFICATION
Physical Characteristics
| Dimensions | 202.0 x 72.5 x 32.0 mm / 7.95 x 2.85 x 1.26 in. |
| Weight | 370g / 13.05oz.(SE4710); 404g / 14.25oz. (SE4850) |
| Display | 4-inch high definition full display, IPS LTPS 800*480 |
| Battery | 5200 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC；Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security Standby: over 300 hours (only main battery) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) |
| Touch Panel | Multi-touch panel, gloves and wet hands supported |
| Speaker | Support |
| Vibrator | Support |
| Microphone | 2 Microphones, 1 for noise reduction |
| Interfaces | USB3.0, Type-C, OTG, extended thimble |
| Card slot | 1 slot for SIM card, 1 slot for TF card |
| Keypad | Main keyboard: 37 keys in total Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key |
| Sensors | Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor |
| Indicator LED | Power, charging, status indicator |
User Environment
| Operating Temp. | -20 ℃ to +50 ℃ |
| Storage Temp. | -40 ℃ to +70 ℃ |
| Humidity | 5% RH to 95% RH (non condensing) |
| Drop Specification | Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
Developing Environment
| Operating System | Android 11; GMS, Android Enterprise, Zero-Touch,FOTA, Soti MobiControl, SafeUEM supported |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
Performance
| CPU | Qualcomm 1.8 GHz Octa-core |
| RAM+ROM | 2GB+16GB / 3GB+32GB / 4GB+64GB |
| Expansion | Supports up to 128 GB Micro SD card |
| GNSS | GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna |
UHF RFID
| Engine | CM2000-1 module based on Impinj Indy R2000 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular Polarized Antenna (4 dBi) |
| Power | 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.) |
| R/W ranges | > 25 m (indoors); > 15 m (open outdoors, Impinj MR6 tag) |
| Fastest Read Rate | 900+ tags/sec |
| Communication Mode | Pin Connector |
| Note | *Ranges and rates depend on tags and environment |
| Note2 | *This function is optional |
Barcode scanning
| 2D Imager Scanner | Zebra: SE4710/SE4750/SE4850 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
Camera
| Rear Camera | Rear 13 MP Autofocus with flash |
NFC
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
Optional accessories
| Accessories | Separate handle with one button； Handle + battery (handle battery 5200mAh, one button) ; UHF back clip + handle (5200mAh, one button) ; Wrist Strap; Charging Cradle |
| Note | *See details in Accessory Guide |
Communication
| WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
| WWAN (Europe, Asia) | 2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39) 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| WWAN (America) | 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B2/B4/B5/B7/B12/B17/B38 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| Bluetooth | Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR |
| Core number | 8 |
|---|---|
| Barcode scanner | SE4750 1D/2D Medium Range Imager |
| RFID | NFC |
| Pistol grip | Yes |
| Keyboard | 37 Key QWERTY |
| Memory options (RAM/Flash) | 3GB/32GB |
| camera | rear camera/top camera |
| Battery | No |
Write Your Own Review
| File to download: | Chainway_C61_Accessories_Guide-EN.pdf |
|---|---|
| File to download: | Chainway_C61-EN.pdf |
| File to download: | Chainway_C61_User_Manual.pdf |
