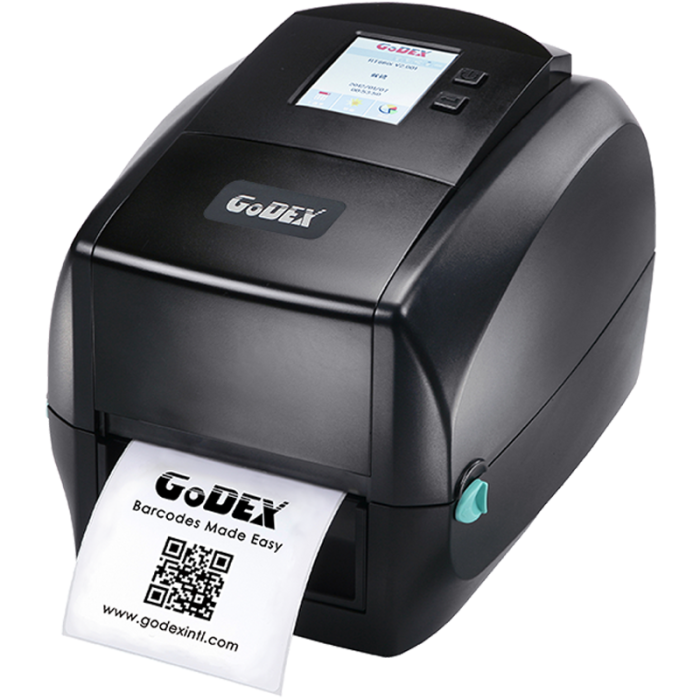

Label printer Godex RT700i

Print Method

Thermal Transfer / Direct Thermal

Resolution

RT700/RT700i: 203 dpi (8 dots/mm)

RT730/RT730i: 300dpi (12 dots/mm)

Print Speed

RT700: 5 IPS (127 mm/s)

RT730: 4 IPS (102 mm/s)

RT700i: Up to 7 IPS (177 mm/s)

RT730i: 5 IPS (127 mm/s)

Print Width

RT700/RT700i: 4.25” (108 mm)

RT730/RT730i: 4.16” (105.7 mm)

Print Length

RT700/RT700i: Min. 0.16” (4 mm); Max. 68” (1727 mm)

RT730/RT730i: Min. 0.16” (4 mm); Max. 30” (762mm)

Processor

32 Bit RISC CPU

Memory

8 MB Flash (4MB for user storage) ; 16MB SDRAM

Sensor Type

Adjustable reflective sensor. Fixed transmissive sensor, central aligned.

Media

Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming.

Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.

Thickness: 0.003” (0.076 mm) Min. - 0.008 (0.20 mm) Max.

Label roll diameter: Max. 5” (127 mm)

Core diameter: 1” (25.4 mm), 1.5“ (38.1 mm)

Ribbon

Types: Wax, wax/resin, resin

Lenght: 981” (300m)

Width: 1.18” (30mm) Min. - 4.33” (110mm) Max

Ribbon Roll Diameter: 2.67” (68 mm)

Core Diameter: 1” (25.4 mm)

Printer Language

EZPL, GEPL, GZPL, GDPL, GDPL auto switch

Software

Label design software: GoLabel (for EZPL only)

Driver: Vista, Windows 7, Windows 8 & 8.1, Windows 10, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, MAC, Linux

SDK: Win CE, .NET, Windows Vista, Windows 7, Windows 8 & 8.1, Windows 10, Android, Mac, iOS

Resident Fonts

Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B

Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Bitmap fonts 8 times expandable in horizontal and vertical directions.

Download Fonts

Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

AsianFonts: 16x16, 2 4x24. Traditional Chinese ( BIG-5), Simplified Chinese(GB2312), Japanese ( S-JI S), Korean ( KS-X1001)90°, 180°, 270° rotatable a nd 8 times expandable  in horizontal and vertical directions

TTFFonts: TTF Fonts ( Bold / Italic / Underline ). 0°,9 0°, 1 80°, 270° rotatable

Barcodes

1-D Bar codes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight

2-D Bar codes: Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1 Composite

Code Pages

CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737

WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257

Unicode (UTF8, UTF16BE, UTF16LE)

Graphics

Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces

USB Device port (B-Type)

USB Host (A-Type)

Serial port: RS-232 (DB-9)

IEEE 802.3 10/100 Base-Tx Ethernet port RJ-45

Parallel Port (Mini-Centronics)

Control Panel

Color TFT LCD with navigation button

Calibration button

Control key: FEED

Power on/off button

Real Time Clock

Option

Power

Auto Switching 100-240VAC, 50-60Hz

Environment

Operation temperature: 41°F to 104°F (5°C to 40°C)

Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity

Operation: 30-85%, non-condensing.

Storage: 10-90%, non-condensing.

Agency Approvals

CE(EMC), FCC Class A, CB, cUL, EAC, BIS, CCC

Dimension

Length: 11” (280 mm)

Height: 7.3” (186 mm)

Width: 8.3” (210 mm)

Weight

5.73 lbs (2.6 Kg), excluding consumables

Options

Cutter Module

Label Dispenser with label taken sensor module

External label roll holder for 10” (250 mm) OD label rolls

External label rewinder

Bluetooth module (distribtor install)

WiFi printer server module (distributor install)
