CP30 RFID Printer-Direct Thermal and Thermal Transfer-203 dpi-USB, Bluetooth, WIFI, Ethernet
In stock
SKU
CP30 RFID Printer-6
€22,371.47
Quick Overview
CP30 RFID Printer
Powerful RFID and Barcode Printing, Speedy and Highly Secured

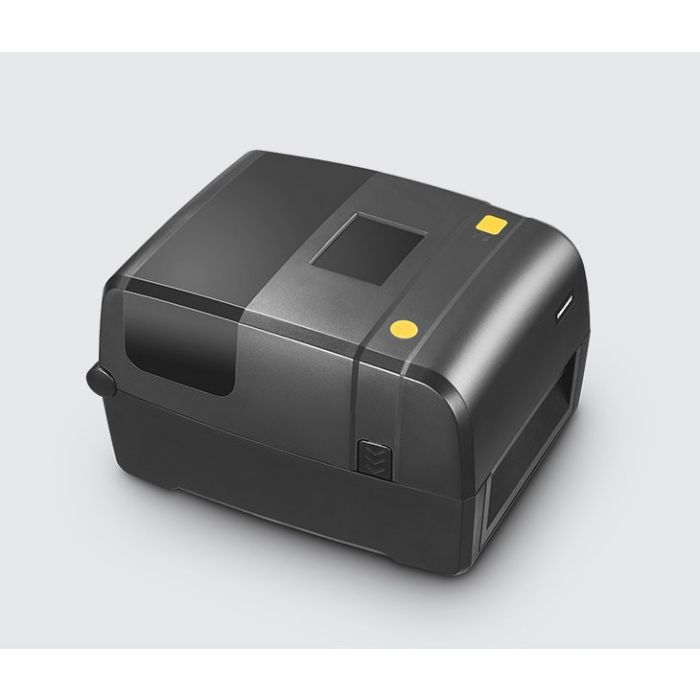

Chainway CP30 is an RFID printer with outstanding printing performance, supporting both thermal and thermal transfer printing. Featuring 3.5-inch LCD touch screen, multiple communication interfaces, and automatic identification of printheads of different resolutions, CP30 can accurately and quickly print various RFID tags, barcodes, invoices and wristbands, meeting the printing needs of various industries.
| Dimensions | 293mm × 237mm × 180mm |
| Weight | 2.9kg / 102.29oz. |
| Display | 3.5" TFT Color Touch Panel LCD |
| Interfaces | Standard: USB, USB host, Ethernet Optional: Wi-Fi, Bluetooth |
| Power Supply | External AC / DC switching power adapter, AC 100V-240V / DC 24V / 2A / 48W, Peak 8A |
| Operating Temp. | 41℉ (5℃)-104℉ (40℃), humidity 30% to 85% non-condensing |
| Storage Temp. | -4℉ (-20℃)-122℉ (50℃), humidity 10%-90% non-condensinng |
| Printing Method | Thermal transfer / Direct thermal |
| Resolution | 203dpi / 300dpi |
| Max. Printing Speed | 8ips (203dpi) / 6ips (300dpi) |
| Max. Printing Width | 108mm (203dpi) / 106mm (300dpi) |
| Max. Printing Length | 2,286mm (203dpi) / 1,524mm (300dpi) |
| RFID Tag | UHF RFID, 860-928MHz, EPC C1G2 (ISO18000-6C) |
| Types | Continuous Paper, Gap, Black Mark, Punched Hole Label |
| Width | 1'' (25.4) - 4.65'' (118mm), include the liner |
| Thickness | 0.002'' (60um) - 0.01'' (250um) |
| Label Roll Diameter | 5'' (127mm) Max |
| Core Diameter | 0.5'' (12.7mm), 1'' (25.4mm), 1.5'' (38mm) |
| Types | Wax, Wax / Resin, Resin |
| Width | 1.18'' (30mm) - 4.33'' (110mm) |
| Length | 984' (300m) |
| Core Diameter | 1'' (25.4mm) |
| RAM | 128MB |
| Flash | 256MB |
| Emulation | ZPL-II, TSPL, DPL, EPL |
| Software | Label Design Software : Bartender Ultralite Driver: Windows Vista 7 / 8 / 10, Server 2012 / 2016 / 2018 |
| Resident Fonts | Bitmap fonts: 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions TTF fonts: Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts: 90°, 180°, 270° rotatable and 10 times expandable in horizontaland vertical directions Asian fonts: 16 x 16, 24 x 24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90°, 180°, 270°, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts: 90°, 180°, 270° rotatable |
| Barcodes | 1D: Code 39, Code 93, EAN 8 / 13 (add on 2 & 5), UPC A / E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC / EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49, Cadablock 2D: PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code |
| Code Page | 850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257, UTF-8, UTF-16BE, UTF-16LE,DBCS 932 (JIS), 936 (GBK), 949 (Koran), 950 (BIG5) |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download |
| Options & Accessory | Peeler Module, Cutter Module, External Label Roll Holder |
| Agency Approval | CE EMC (EN 55022 Class B), FCC EMC (Class A), CCC, ROHS |
| Printhead resolution | 203 dpi |
|---|---|
| Printer Interfaces | USB, Bluetooth, WIFI, Ethernet |
