CP30 RFID Printer-Direct Thermal-300 dpi-USB, Bluetooth, WIFI, Ethernet

Skip to the end of the images gallery

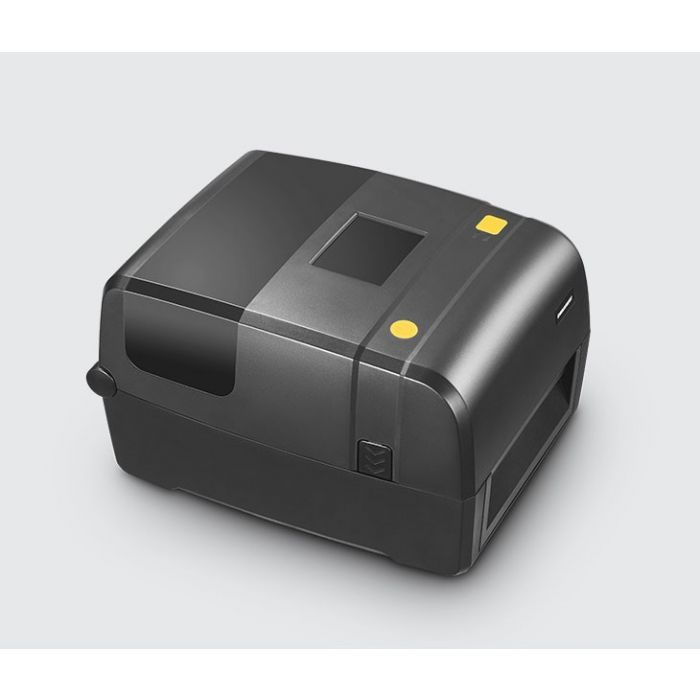

main product photo

Skip to the beginning of the images gallery

CP30 RFID Printer-Direct Thermal-300 dpi-USB, Bluetooth, WIFI, Ethernet

Be the first to review this product

In stock

SKU

CP30 RFID Printer-4

€22,371.47

Quick Overview

CP30 RFID Printer

Powerful RFID and Barcode Printing, Speedy and Highly Secured

Chainway CP30 is an RFID printer with outstanding printing performance, supporting both thermal and thermal transfer printing. Featuring 3.5-inch LCD touch screen, multiple communication interfaces, and automatic identification of printheads of different resolutions, CP30 can accurately and quickly print various RFID tags, barcodes, invoices and wristbands, meeting the printing needs of various industries.

Physical Characteristics
Dimensions	293mm × 237mm × 180mm
Weight	2.9kg / 102.29oz.
Display	3.5" TFT Color Touch Panel LCD
Interfaces	Standard: USB, USB host, Ethernet Optional: Wi-Fi, Bluetooth
Power Supply	External AC / DC switching power adapter, AC 100V-240V / DC 24V / 2A / 48W, Peak 8A

User Environment
Operating Temp.	41℉ (5℃)-104℉ (40℃), humidity 30% to 85% non-condensing
Storage Temp.	-4℉ (-20℃)-122℉ (50℃), humidity 10%-90% non-condensinng

Printing
Printing Method	Thermal transfer / Direct thermal
Resolution	203dpi / 300dpi
Max. Printing Speed	8ips (203dpi) / 6ips (300dpi)
Max. Printing Width	108mm (203dpi) / 106mm (300dpi)
Max. Printing Length	2,286mm (203dpi) / 1,524mm (300dpi)

Media
RFID Tag	UHF RFID, 860-928MHz, EPC C1G2 (ISO18000-6C)
Types	Continuous Paper, Gap, Black Mark, Punched Hole Label
Width	1'' (25.4) - 4.65'' (118mm), include the liner
Thickness	0.002'' (60um) - 0.01'' (250um)
Label Roll Diameter	5'' (127mm) Max
Core Diameter	0.5'' (12.7mm), 1'' (25.4mm), 1.5'' (38mm)

Ribbon
Types	Wax, Wax / Resin, Resin
Width	1.18'' (30mm) - 4.33'' (110mm)
Length	984' (300m)
Core Diameter	1'' (25.4mm)

Performance
RAM	128MB
Flash	256MB

Other Specification (RFID Printer)
Emulation	ZPL-II, TSPL, DPL, EPL
Software	Label Design Software : Bartender Ultralite Driver: Windows Vista 7 / 8 / 10, Server 2012 / 2016 / 2018
Resident Fonts	Bitmap fonts: 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions TTF fonts: Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable
Download Fonts	Bitmap fonts: 90°, 180°, 270° rotatable and 10 times expandable in horizontaland vertical directions Asian fonts: 16 x 16, 24 x 24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90°, 180°, 270°, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts: 90°, 180°, 270° rotatable
Barcodes	1D: Code 39, Code 93, EAN 8 / 13 (add on 2 & 5), UPC A / E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC / EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49, Cadablock 2D: PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code
Code Page	850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257, UTF-8, UTF-16BE, UTF-16LE,DBCS 932 (JIS), 936 (GBK), 949 (Koran), 950 (BIG5)
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download
Options & Accessory	Peeler Module, Cutter Module, External Label Roll Holder
Agency Approval	CE EMC (EN 55022 Class B), FCC EMC (Class A), CCC, ROHS

More Information

More Information
Printhead resolution	300 dpi
Printer Interfaces	USB, Bluetooth, WIFI, Ethernet

File to download:	CP30-EN.pdf
File to download:	CP30 Accessories Guide-EN.pdf
File to download:	CP30_DRIVER.rar
File to download:	Utility.rar
File to download:	Windows_ZPL SDK_v1.4.2.0.rar
File to download:	ZPL_Linux SDK_V1.4.0.2.rar
