Confidex ESD On-Metal RFID Label
In stock
SKU
3003359
€100.67
Quick Overview

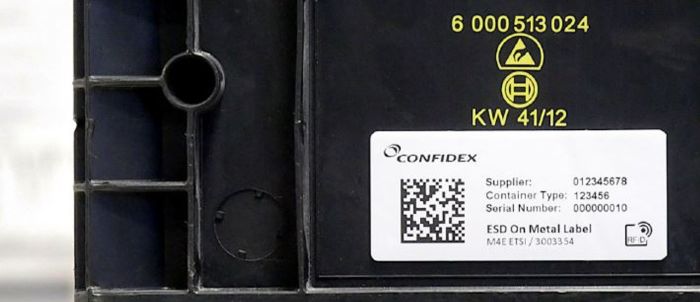

Confidex ESD On-Metal RFID Label
Powered by the Impinj Monza 4E chip, the Confidex ESD On-Metal RFID Label offers superior performance across a wide array of applications. The ESD On-Metal Label is both flexible and durable, allowing it to be used on curved surfaces without sacrificing read range. Optimized for ESD plastic, the ESD On-Metal Label is available with an optional protective PET film that improves printing durability against chemicals and washing.
Write Your Own Review
| File to download: | Confidex ESD On-Metal RFID Label Version 2.pdf |
|---|---|
| File to download: |
Features
- Printable UHF RFID label.
- Optimized for ESD plastic.
- Read rage up to 9 m (30 ft) on metallic surfaces.
- Can be applied on a curved surface.
Printer Compatibility
- SATO CL4NX Series Thermal UHF RFID Printer
- Zebra Custom ZT410 Silverline RFID Label Printer - Encoder
- Zebra ZT411 On-Metal RFID Printer
- Printronix T6000e Printer
- Printronix T4000 Printer
- Printronix T800 Printer
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-869 MHz) |
| IC Type: | Impinj Monza 4E |
| Memory: | EPC 496 bit, User 128 bit, TID 96 bit |
| EPC Memory Content: | Not guaranteed unique |
| Max Read Distance - On Metal: | Up to 9 m (30 ft) |
| Max Read Distance - On ESD Plastic: | Up to 4 m (13 ft) |
| Max Read Distance - Liquid Containers: | Up to 4 m (13 ft) |
| Application Surface Materials: | All surfaces, optimized for ESD plastics |
| MECHANICAL: | |
| Tag Form Factor: | Label tag |
| Tag Materials: | Printable white PET (Thermal Transfer) |
| Recommended Ribbon: | Resin ribbon |
| Attachment Method: | High tack adhesive |
| Dimensions: | 80 x 35 x 1.2 mm (3.15 x 1.38 x 0.047 in) |
| Weight: | 1.5 g |
| ENVIRONMENT: | |
| Operating Temperature: | -35°C to +85°C (-31°F to +185°F) |
