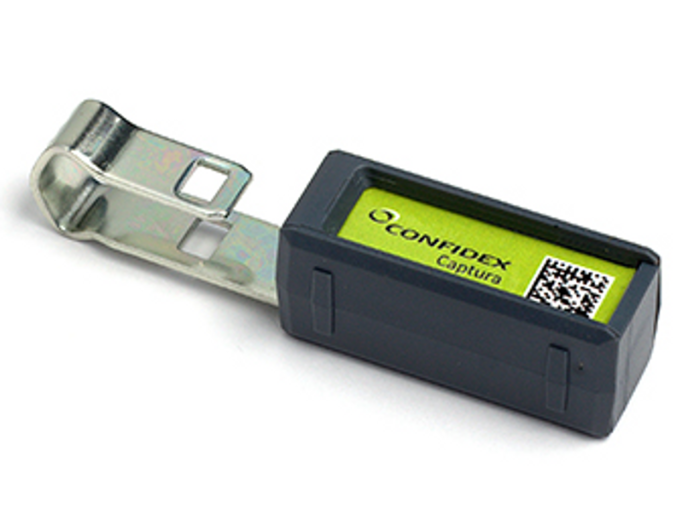

Confidex Captura RFID Tag
Confidex Captura RFID Tag
The Confidex Captura comes with both mechanical and electrical seal functions and is extremely easy and fast to attach. As there is no need for adhesives, screws or other fixing tools, it is simple to calculate the total cost of ownership for Captura. Just click, secure and tag your asset. Confidex Captura is fixed in a few seconds without any additional fixing materials. It fits to most of the RTI's where there is a place to lock the hook. When required, the Captura can be delivered as encoded and equipped with a barcode according to the project requirements. As the Captura can be taken into use directly from the box in a few seconds, it is easy to calculate the return on investment and the total cost of the ownership of the tags.
File to download: | Confidex_Captura_Tag.pdf |
---|---|
File to download: |
Features
- Metal-mount tag.
- Locking feature.
- Unprecedented level in both Class 1 Gen 2 tag security and usability.
- Extremely easy and fast to attach.
- Mechanical and electrical seal.
- Hanging metal applications.
- IP 67 rated.
ELECTRICAL: | |
---|---|
Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
Operating Frequency: | Global (865-928 MHz) |
IC Type: | NXP UCODE G2XM |
Memory: | EPC 240 bits, User 512 bits, TID 64 bits |
EPC Memory Content: | Unique, randomized number |
Max Read Distance (US): | Up to 8 m (26 ft) |
Max Read Distance (EU): | Up to 10 m (33 ft) |
Applicable Surface Materials: | Metallic surfaces |
MECHANICAL: | |
Tag Form Factor: | Hard tag/hang tag |
Tag Materials: | High quality engineering plastics and metal |
Attachment Method: | Metal hook for hang tag attachment |
Dimensions: | 57.5 x 19 x 20 mm (2.26 x .75 x .79 in) |
Weight: | 22 g |
ENVIRONMENT: | |
Operating Temperature: | -30° to +70°C (-22° to +158°F) |
