Confidex Captura Flash™ RFID Tag
In stock
SKU
3002497
€100.67
Quick Overview

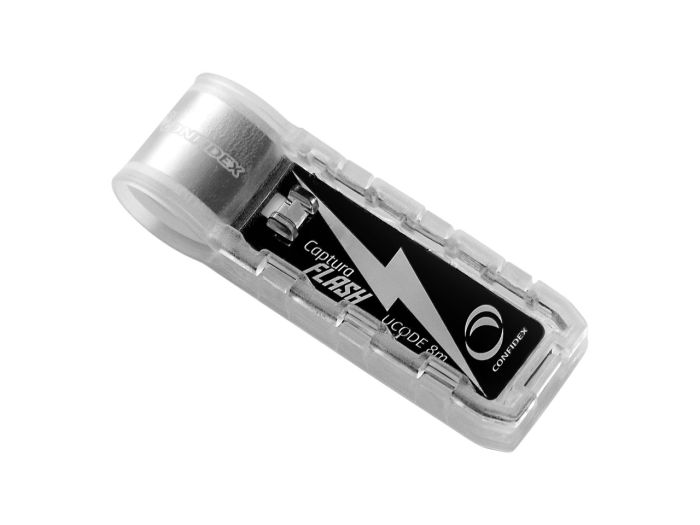

Confidex Captura Flash™ RFID Tag
Confidex Captura Flash™ RFID Tags present unprecedented level in both RFID tag security and usability. These tags come with both mechanical and electrical seal functions and are extremely easy and fast to attach. When required, Confidex Captura Flash™ tags can be encoded and equipped with a barcode, printing, or branding according to the project requirements. Confidex Captura Flash™ tags provide reliable identification in RFID gates by giving 12 m read range in optimal use case. Combined with tamper-proof antenna design structure and NXP UCODE8m with the option of adding a brand identifier, Confidex Captura Flash™ is the choice for securing your asset's ID.
Write Your Own Review
| File to download: | Confidex Captura Flash™ RFID Tag.pdf |
|---|---|
| File to download: |
Features
- IP 68 rated.
- Tamper-proof antenna and seal functionality.
- Cost-efficient brand authentication.
- Up to 12 m (39 ft) read range in optimal use cases.
- Optimized for metal.
- Branding available with printable, protected label inside.
- Option for extra security: brand identifier with the NXP IC UCODE 8m.
- Common applications: manufacturing, automotive, logistics and RTI operation.
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPCglobal Gen2v2 (ISO 1800-63) |
| Operating Frequency: | Global (865‐928 MHz) |
| IC Type: | NXP UCODE 8m |
| Memory: | EPC 96 bit, User 32 bit, TID 96 bit |
| EPC Memory Content: | Unique, randomized number |
| Max Read Distance (Hanging from Metal): | Up to 12 m (39.4 ft) |
| Max Read Distance (Hanging from Plastic): | Up to 3 m (9.8 ft) |
| Max Read Distance (Hanging from Cable): | Up to 2 m (6.6 ft) |
| Applicable Surface Materials: | All surfaces, optimized for metal |
| MECHANICAL: | |
| Tag Form Factor: | Seal tag |
| Tag Materials: | High quality engineering plastics |
| Recommended Ribbon: | Not published |
| Attachment Method: | Snap the tag to the attachment (maximum 12 mm diameter) |
| Dimensions: | 61 x 20 x 10 mm (2.4 x 0.79 x 0.39 in) |
| Weight: | 6 g |
| ENVIRONMENT: | |
| Operating Temperature: | ‐35° to +85°C (‐31° to +185°F) |
